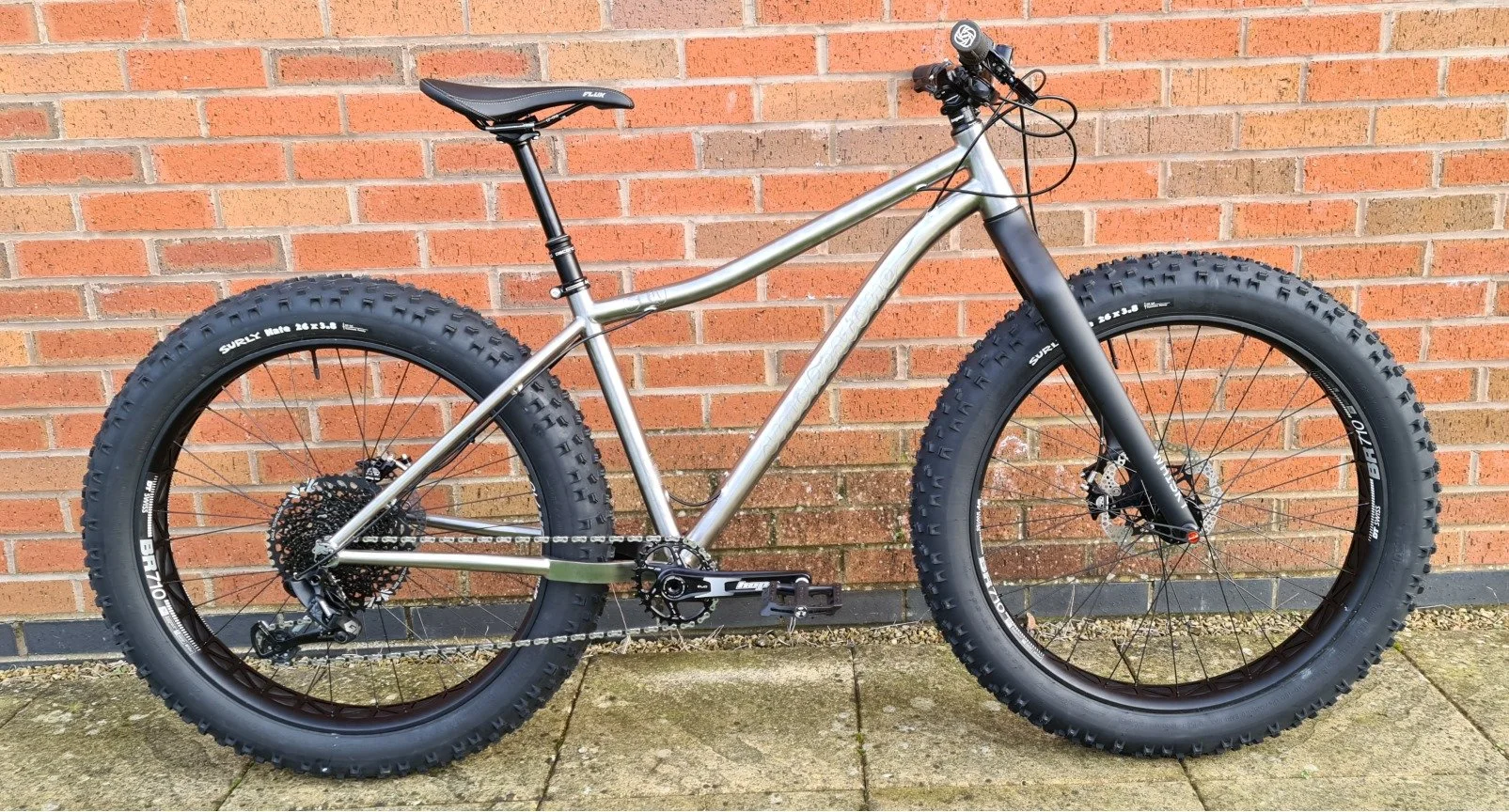

The Bow Ti

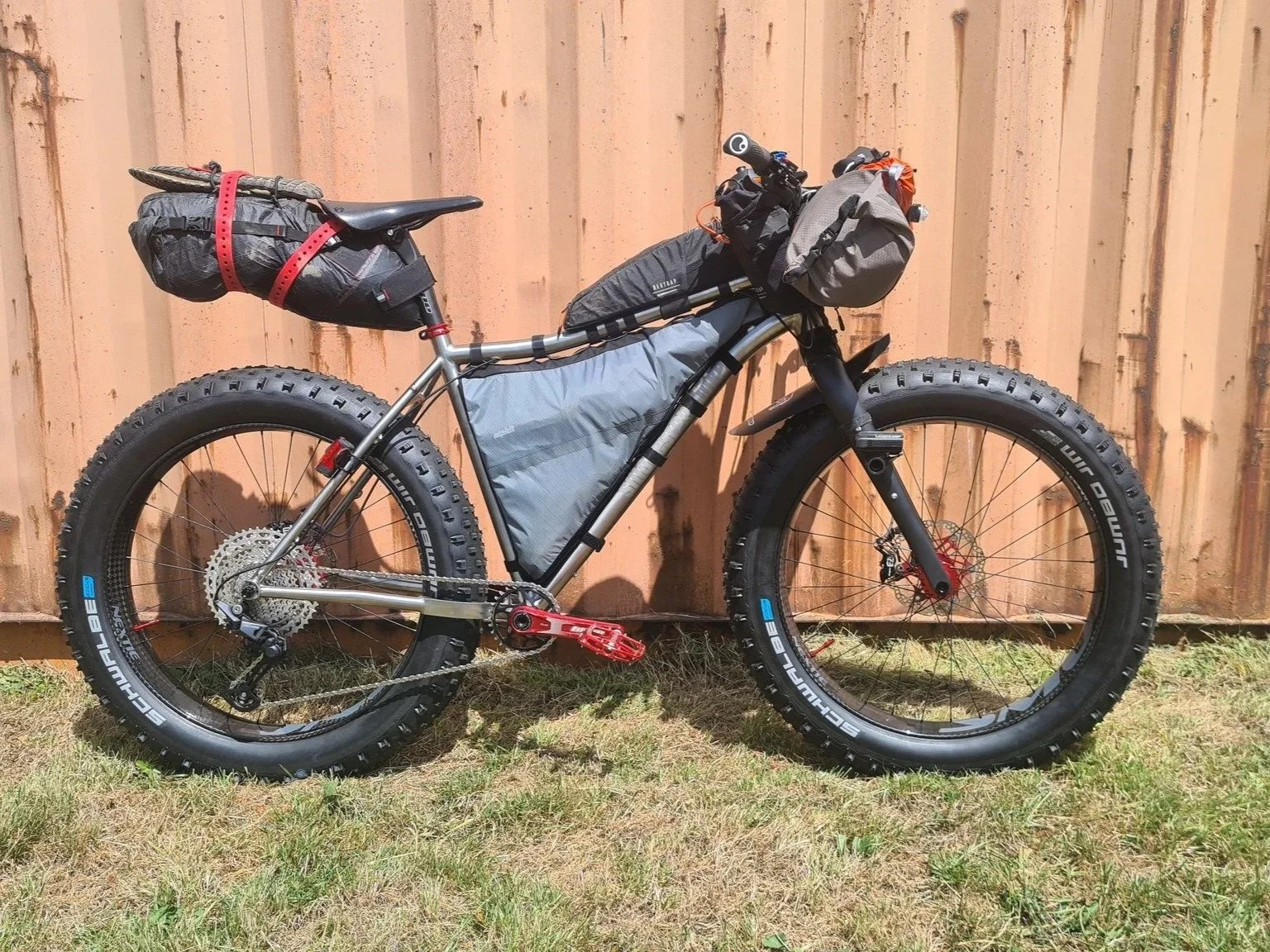

The Smokestone BowTi is a premium titanium Fatbike frame designed for adventure, durability, and versatility. Engineered for mtb trails, bikepacking, gravel and the toughest of off-road exploration, the BowTi offers a perfect balance of strength, lightweight performance, and all-day comfort. With custom geometry, Pinion gearbox or traditional drivetrain and precision craftsmanship, this bespoke titanium frame is built for life. Discover the ultimate fatbike ride with the Smokestone BowTi.

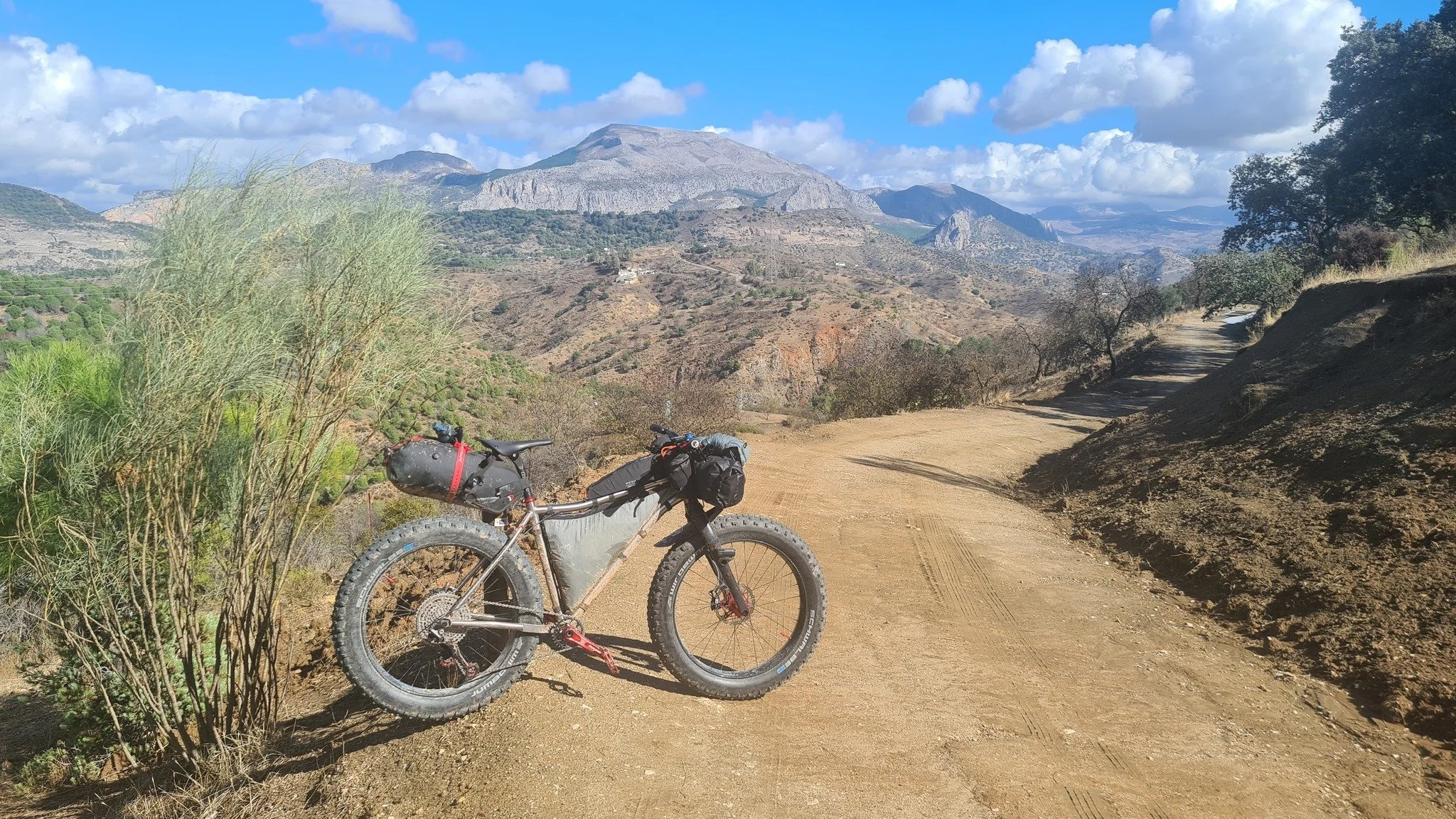

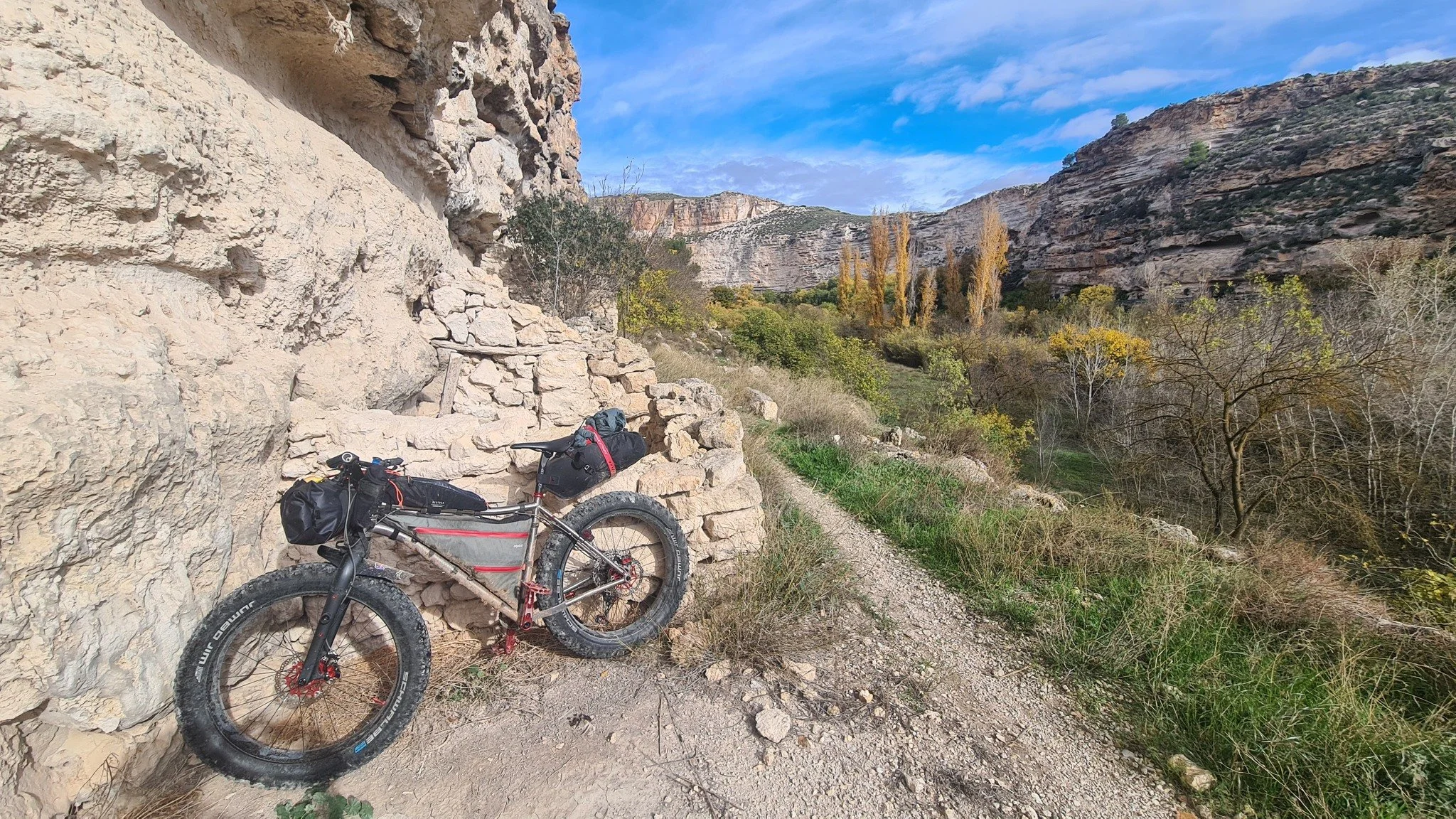

Quote Source - Kim Foster. BowTi owner who just completed the Altravesur bikepacking route
“The bike was excellent, very comfortable and i was extremely pleased with it. Same with the wheels, i had my doubts about carbon fibre rims, but i think they made quite a difference on the climbs paired with the relatively light Jumbo jim tyres.”
BowTi Features
Built for Adventure
The BowTi is designed to handle anything from daily errands to off-grid adventures. With rear rack mounts fitted as standard, you can easily carry your shopping or load up for a trip to the hills with your camping gear—and, of course, a few beers.
Plenty of Storage
For those long rides, the frame includes two bottle cage mounts plus a 3 bolt cargo cage mount under the downtube, giving you extra capacity to wherever the trail takes you.
Cable Routing
The BowTi features guided internal cable routing, making maintenance quick and easy. This system also includes dropper post routing, so you can upgrade your ride without the headache. Should you prefer external routing, no problem, we can do this also.
Future-Ready Drivetrain
Equipped with a UDH (Universal Derailleur Hanger), the BowTi gives you the flexibility to run a traditional drivetrain or go completely cable-free if you prefer a wireless setup.

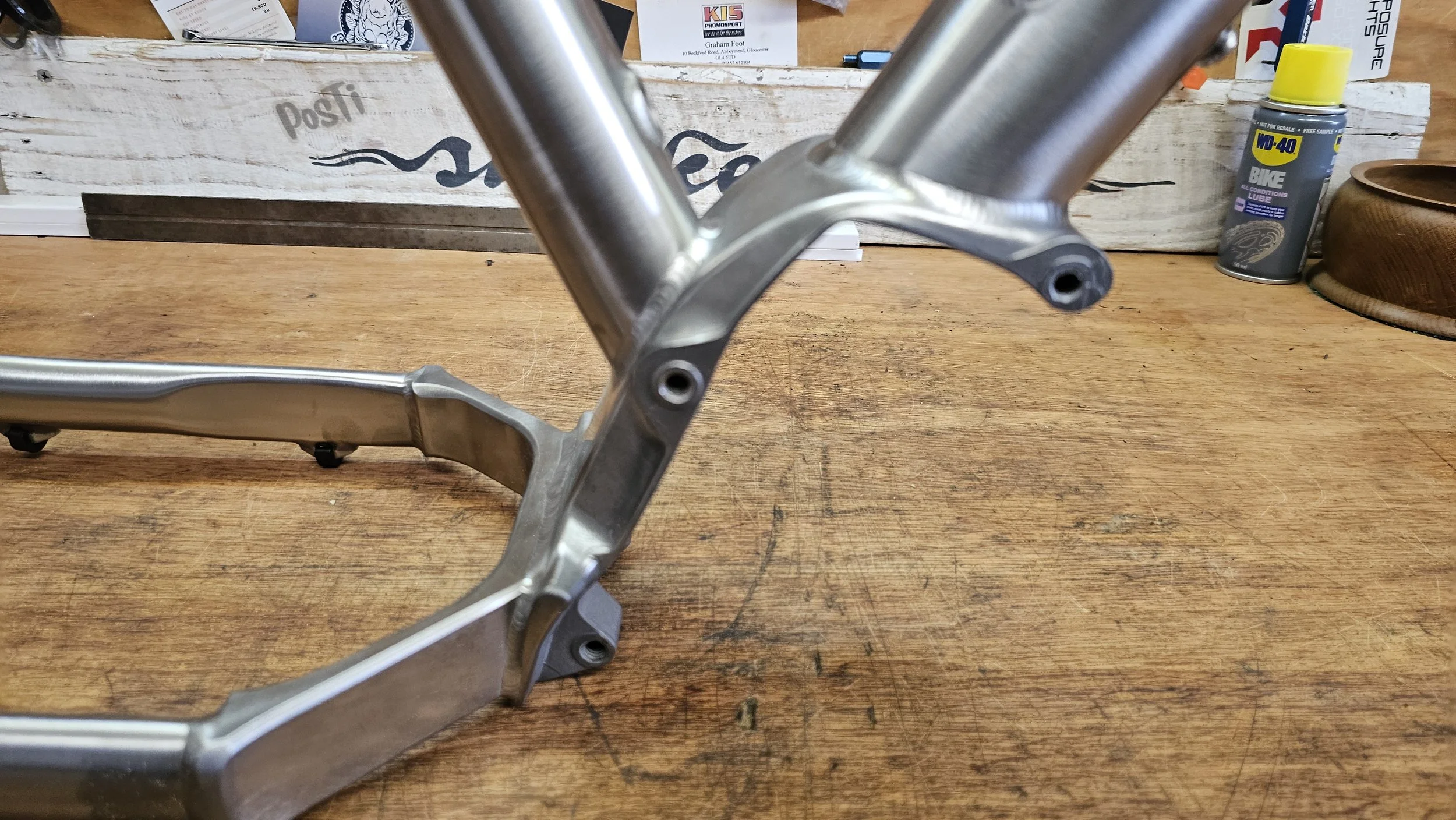

You can of course ditch the Derailleur and go for a Pinion Gearbox with either electric Smart Shift or manual. This includes a split seatstay to take either belt or chain drive.
More Clearance, More Confidence

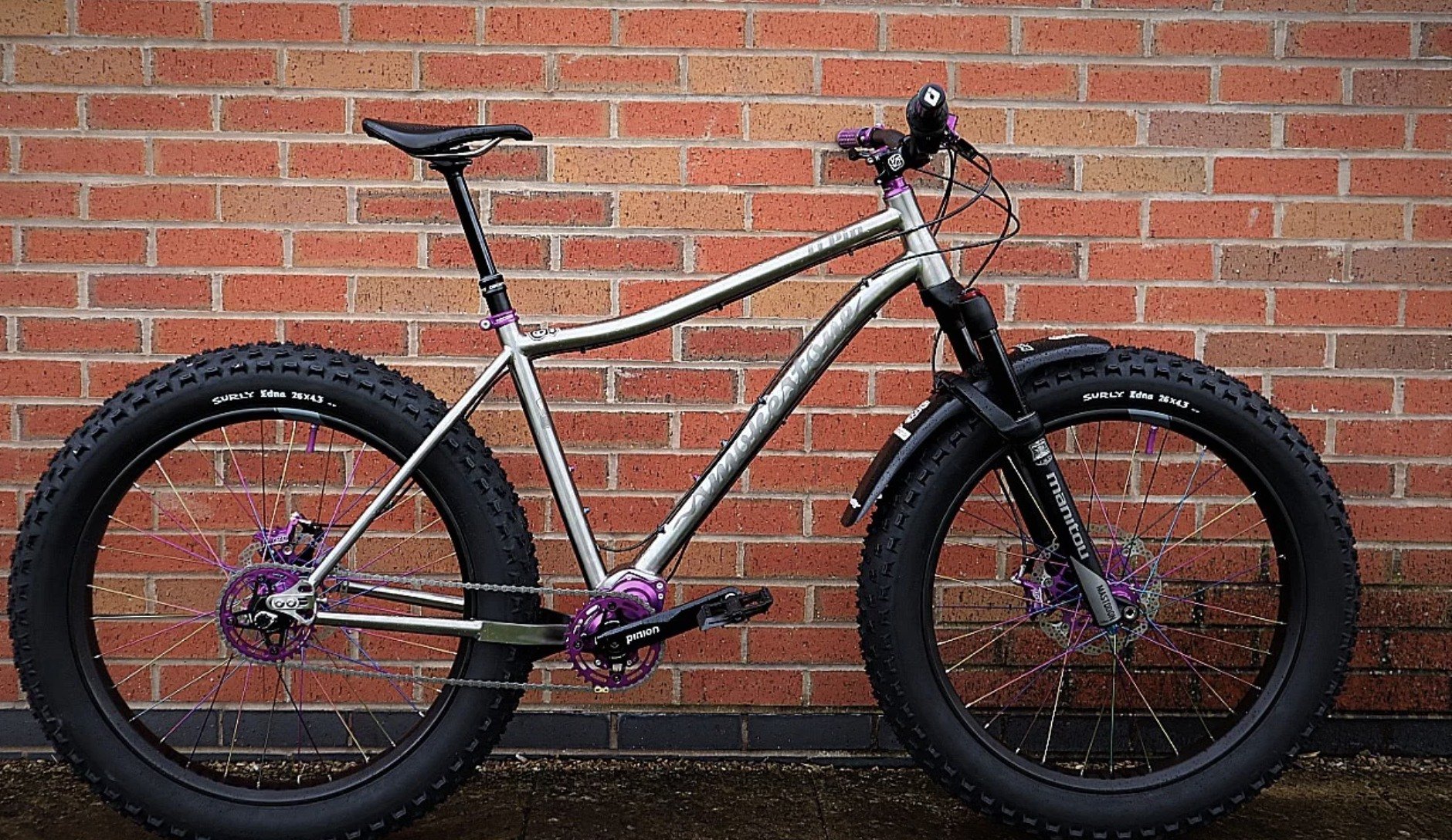

The BowTi retains its signature curved top tube, providing increased standover clearance—perfect for those moments when "Emergency Clearance" is absolutely necessary!
Wherever your next ride takes you, the BowTi is ready.
Complete Bike Spec and prices. Pinion builds coming soon.
-
Frame - BowTi
Fork - FatPacker Carbon Rigid
Headset - Hope
Spacers - Hope
Stem - Gusset Staff
Handlebars - Gusset Beard bar
Grips - Gusset S2
Brakes - Hope Tech 4 X2
Rotors - Hope 180/160
Shifter/rear mech - Shimano XT (manual) 12 speed
Cassette - Shimano XT 12 speed
Crankset - ope EVO
BB - Hope 30mm
Chainring - Hope R22
Chain - Shimano XT
Seatpost - OneUp Dropper
Dropper Lever/Clamp - Hope
Seat Clamp - Hope
Hubs - Hope Fatsno
Rims - DT Swiss BR710 26”
Spokes - DT Comp black
Sealant - Stans
Rim Tape - Tubeless
Valves - Halo HiFlo
Tyres - Schwalbe Jumbo Jim 26”
Saddle - Options
Pedals - Option text goes here
-
Frame - BowTi
Fork - Manitou Mastodon Pro Gen 3
Headset - Hope
Spacers - Hope
Stem - Gusset Staff 31.8
Handlebars - Gusset S2 31.8
Grips - Gusset S2
Brakes - Hope Tech 4 X2
Rotors - Hope 180/160
Shifter/rear mech - Shimano XT (manual) 12 speed
Cassette - Shimano XT 12 speed
Crankset - Hope EVO
BB - Hope 30mm
Chainring - Hope R22
Chain - Shimano XT
Seatpost - OneUp Dropper
Dropper Lever/Clamp - Hope
Seat Clamp - Hope
Hubs - Hope Fatsno
Rims - DT Swiss BR710 26”
Spokes - DT Comp black
Sealant - Stans
Rim Tape - Tubeless
Valves - Halo HiFlo
Tyres - Schwalbe Jumbo Jim 26”
Saddle - Options
Pedals - Option text goes here
-
Frame - BowTi
Fork - FatPacker Carbon Rigid
Headset - Hope
Spacers - Hope
Stem - Gusset Staff
Handlebars - Gusset Beard bar
Grips - Gusset S2
Brakes - Hope Tech 4 X2
Rotors - Hope 180/160
Shifter/rear mech - Shimano XT (manual) 12 speed
Cassette - Shimano XT 12 speed
Crankset - ope EVO
BB - Hope 30mm
Chainring - Hope R22
Chain - Shimano XT
Seatpost - OneUp Dropper
Dropper Lever/Clamp - Hope
Seat Clamp - Hope
Hubs - Hope Fatsno
Rims - DT Swiss BR710 26”
Spokes - DT Comp black
Sealant - Stans
Rim Tape - Tubeless
Valves - Halo HiFlo
Tyres - Schwalbe Jumbo Jim 26”
Saddle - Options
Pedals - Option text goes here
-
Frame - BowTi
Fork - Manitou Mastodon Pro Gen3
Headset - Hope
Spacers - Hope
Stem - Gusset Staff 31.6
Handlebars - Gusset S2 31.6
Grips - Gusset S2
Brakes - Hope Tech 4 X2
Rotors - Hope 180/160
Shifter/rear mech - Shimano XT (manual) 12 speed
Cassette - Shimano XT 12 speed
Crankset - ope EVO
BB - Hope 30mm
Chainring - Hope R22
Chain - Shimano XT
Seatpost - OneUp Dropper
Dropper Lever/Clamp - Hope
Seat Clamp - Hope
Hubs - Hope Fatsno
Rims - SM85 Carbon 26”
Spokes - DT Comp black
Sealant - Stans
Rim Tape - Tubeless
Valves - Halo HiFlo
Tyres - Schwalbe Jumbo Jim 26”
Saddle - Options
Pedals - Option description
-

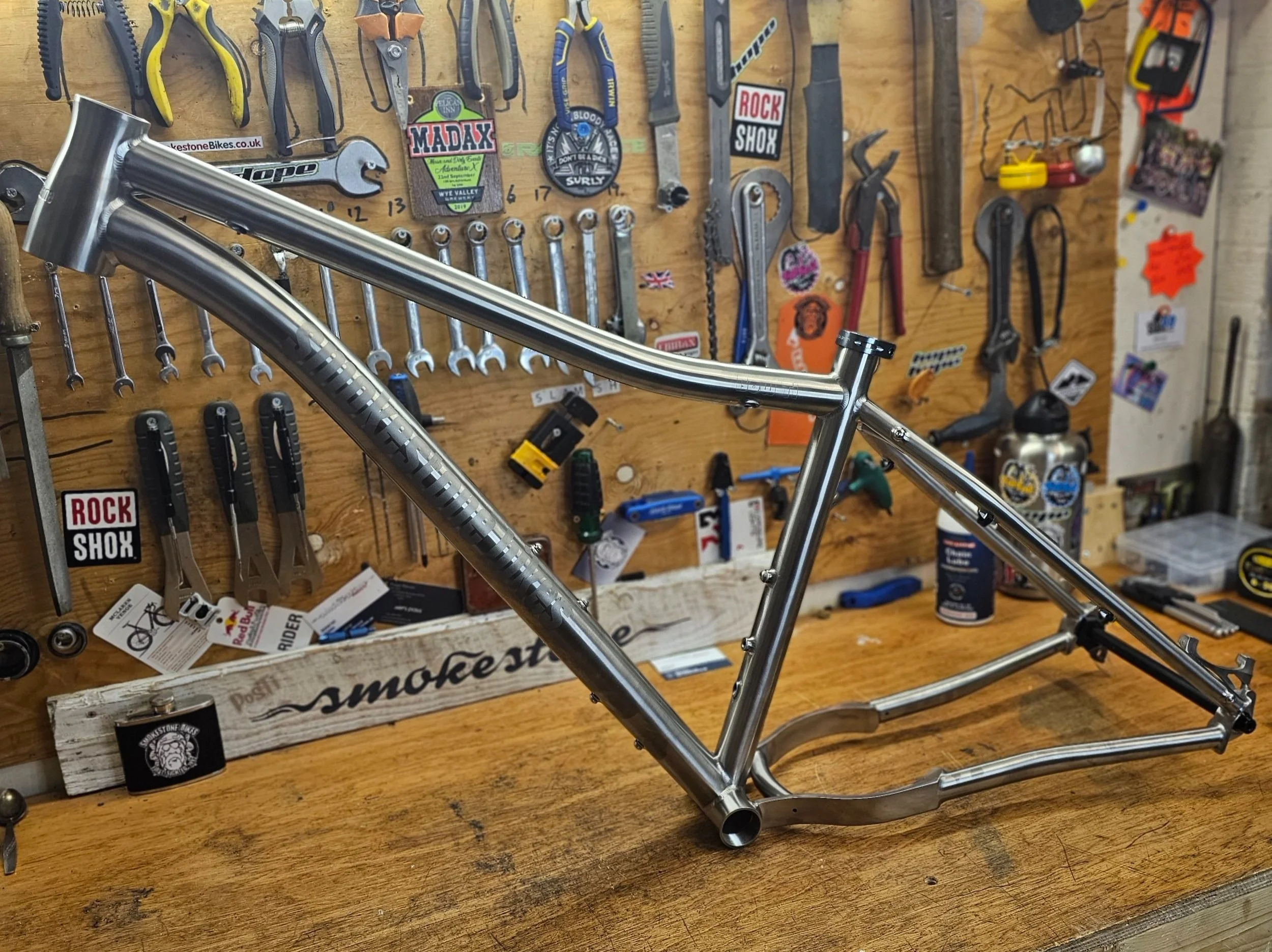

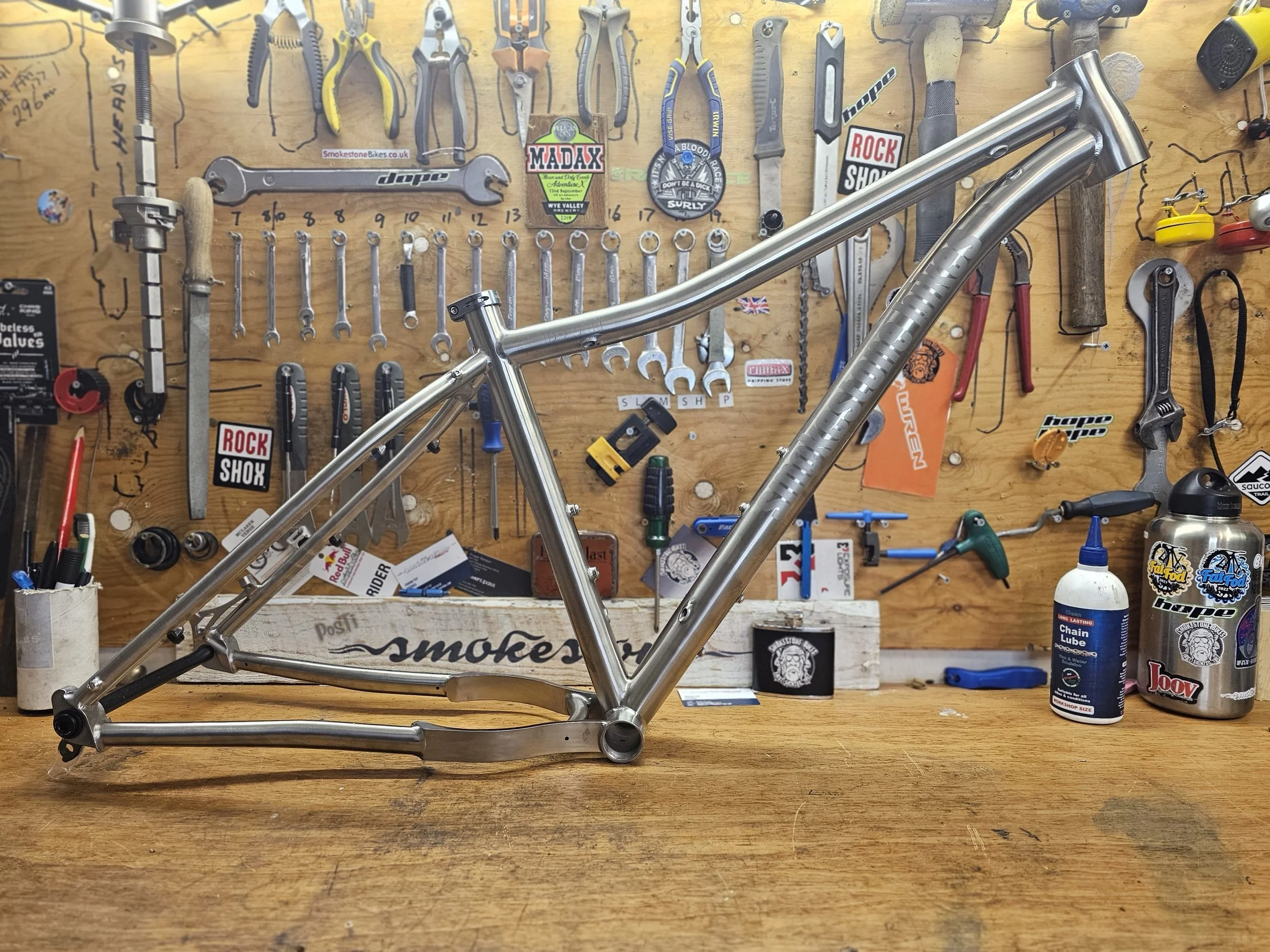

Titanium frame to take traditional drivetrain.
-
Titanium frame, built to take a Pinion Gearbox. (Not compatible with traditional drivetrain.
Note: Images not to spec. Just examples for now.
How to order:
Drop me an email to smokestonebikes@outlook.com to discuss build details.
Payments by BACS, all orders require 50% deposit at time of ordering, frames take 6-8 weeks.
Technical Information.
Headset Size: - Top = IS42, Lower = ZS52.
Rear Axle: - 12 x 197mm (Bolt through axle included).
Bottom bracket - 100mm x BSA standard threaded. (Non-Pinion)
Seat Post Size: - 31.6mm
Seat Clamp Size: - 34.9mm (Included)
Dropper Post: - Internal Stealth cable routing.
Cable Routing - Internal cable routing (Guided). (External Option)
Pannier rack mounts.
2 x bottle cage mounts.
1 x Cargo cage mount (3 bolt under downtube)
Fixed UDH dropouts (Sliding non UDH drop[out option available)
Sizes: - Small, Medium, Large, X-Large
Max tyre size - 26 x 4.8, 27 x 4.5, 29 x 3.0.
Suspension fork travel - 100 to 130mm

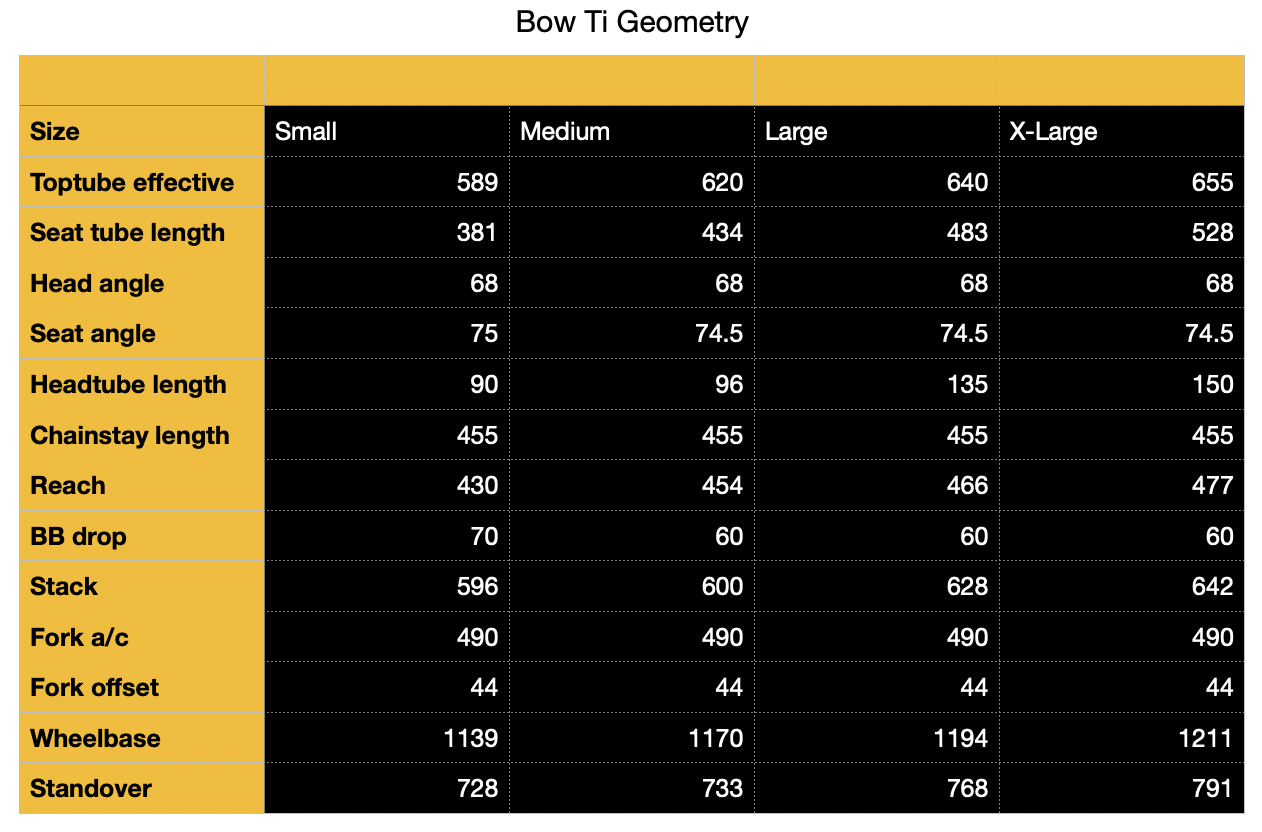

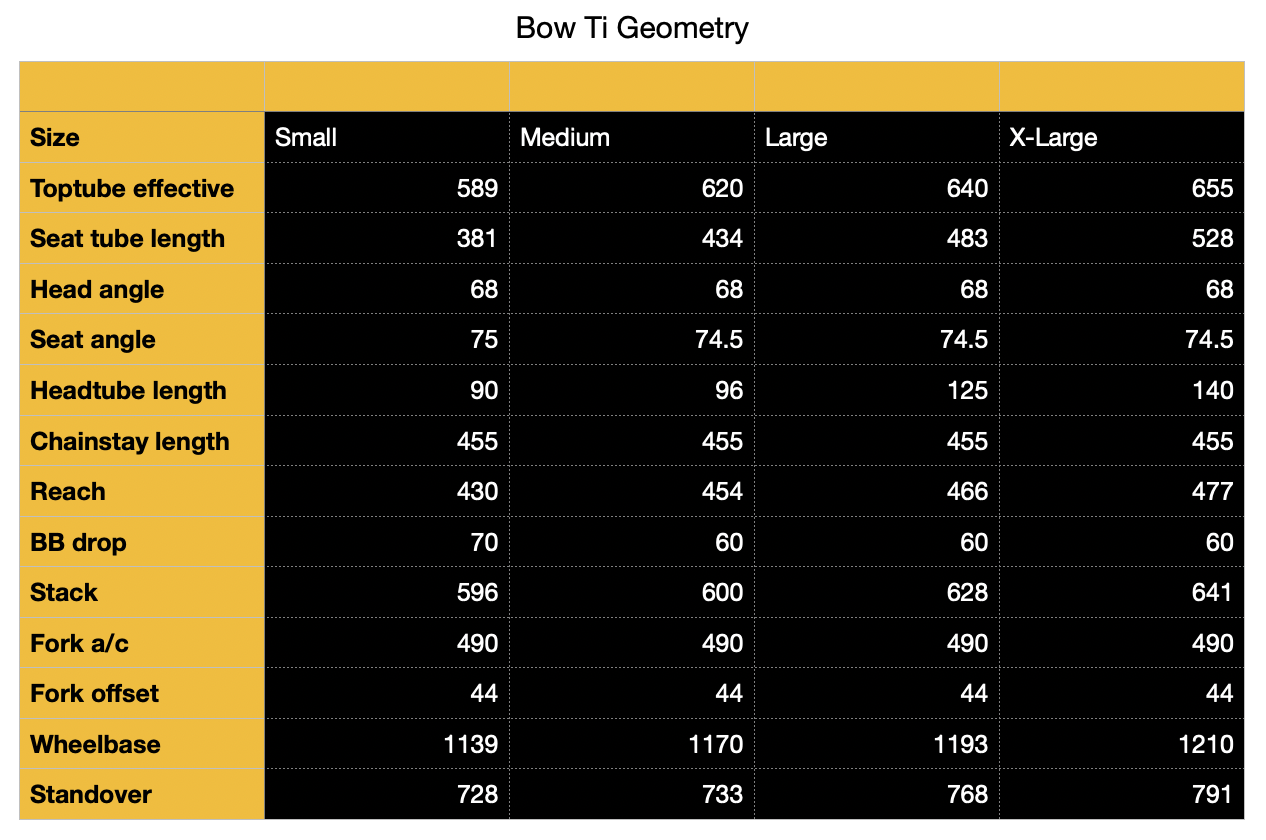

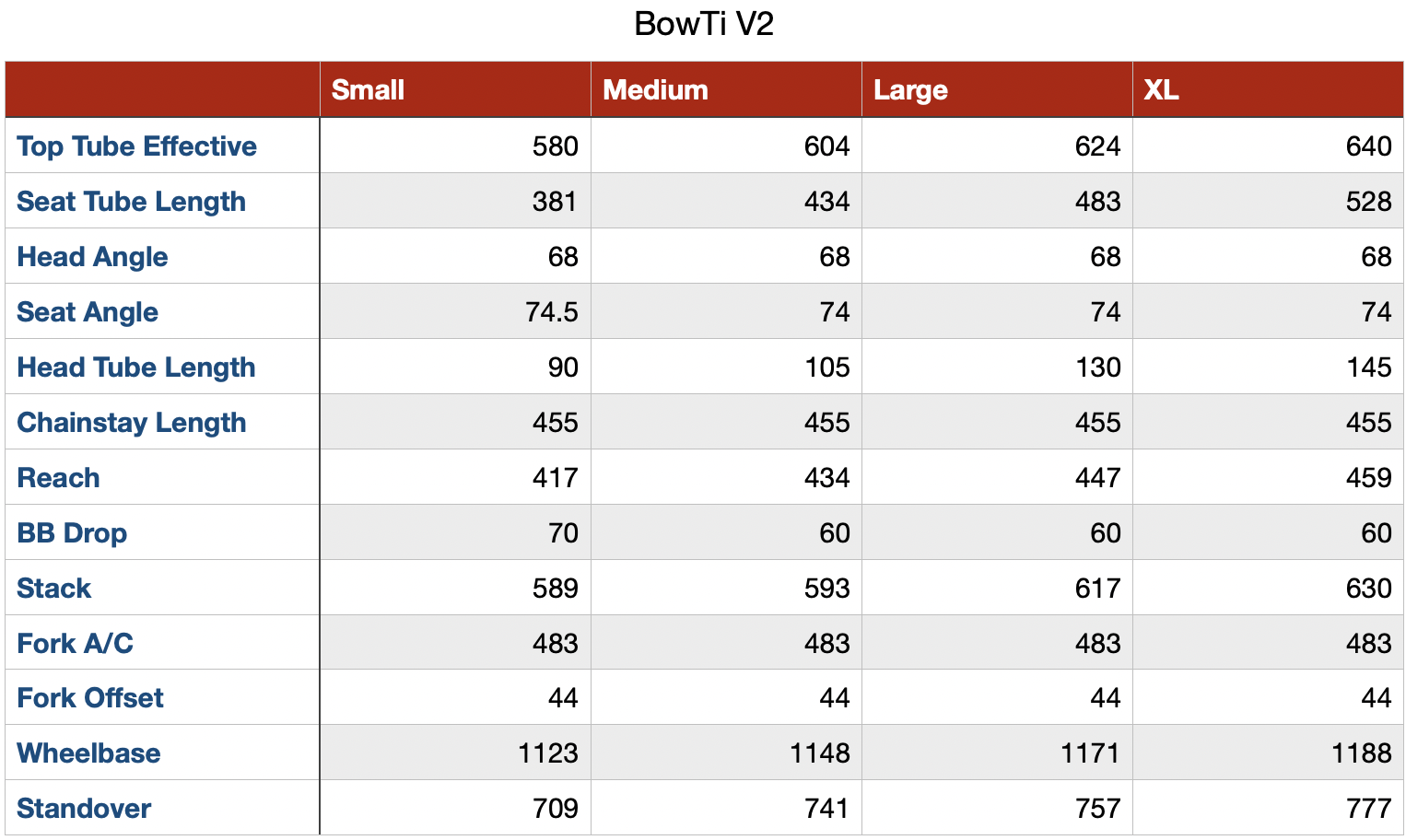

Frame Geometry
