Frame only - £1950.
Frame and Mastodon Pro fork - £2700.

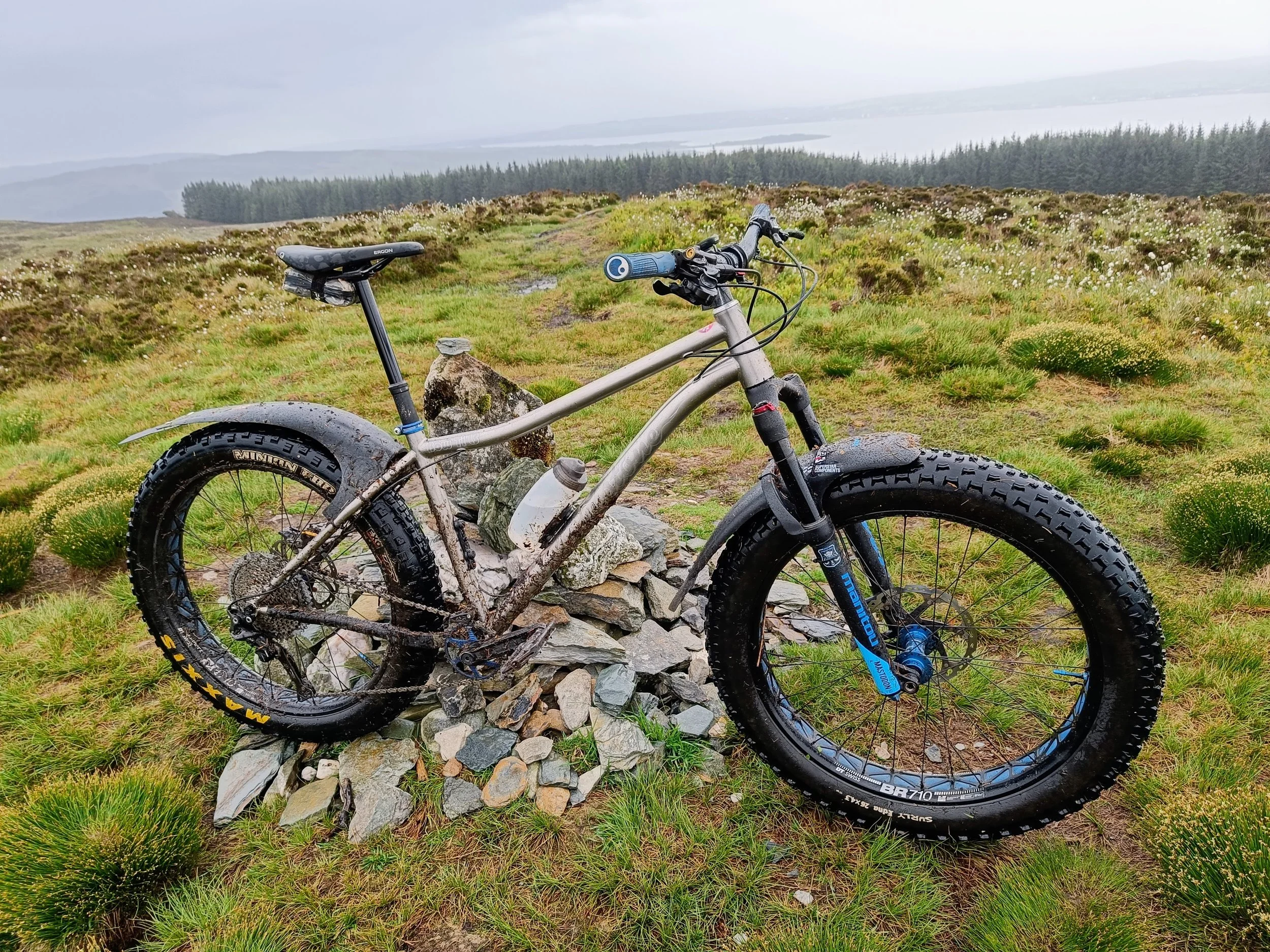

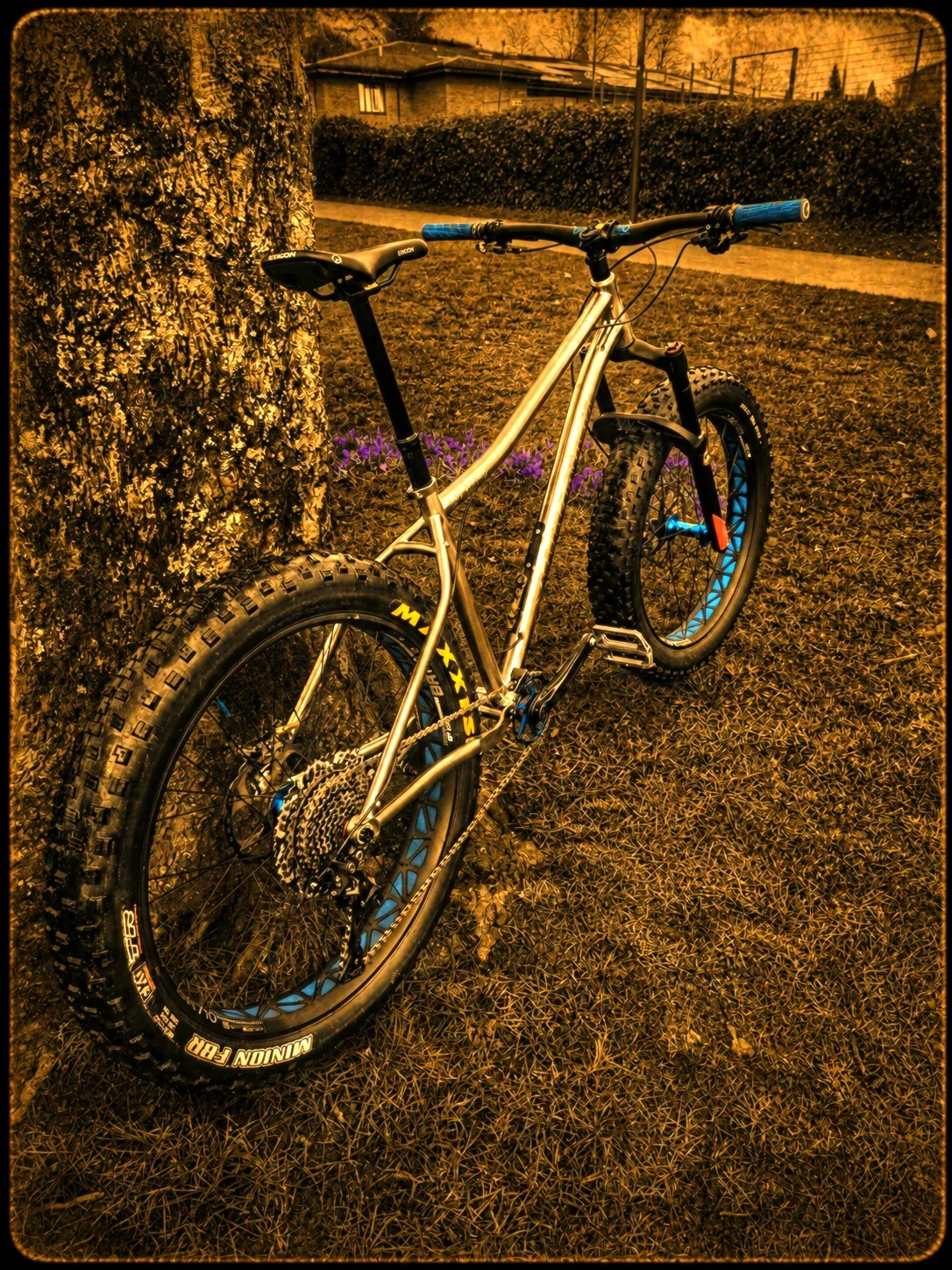

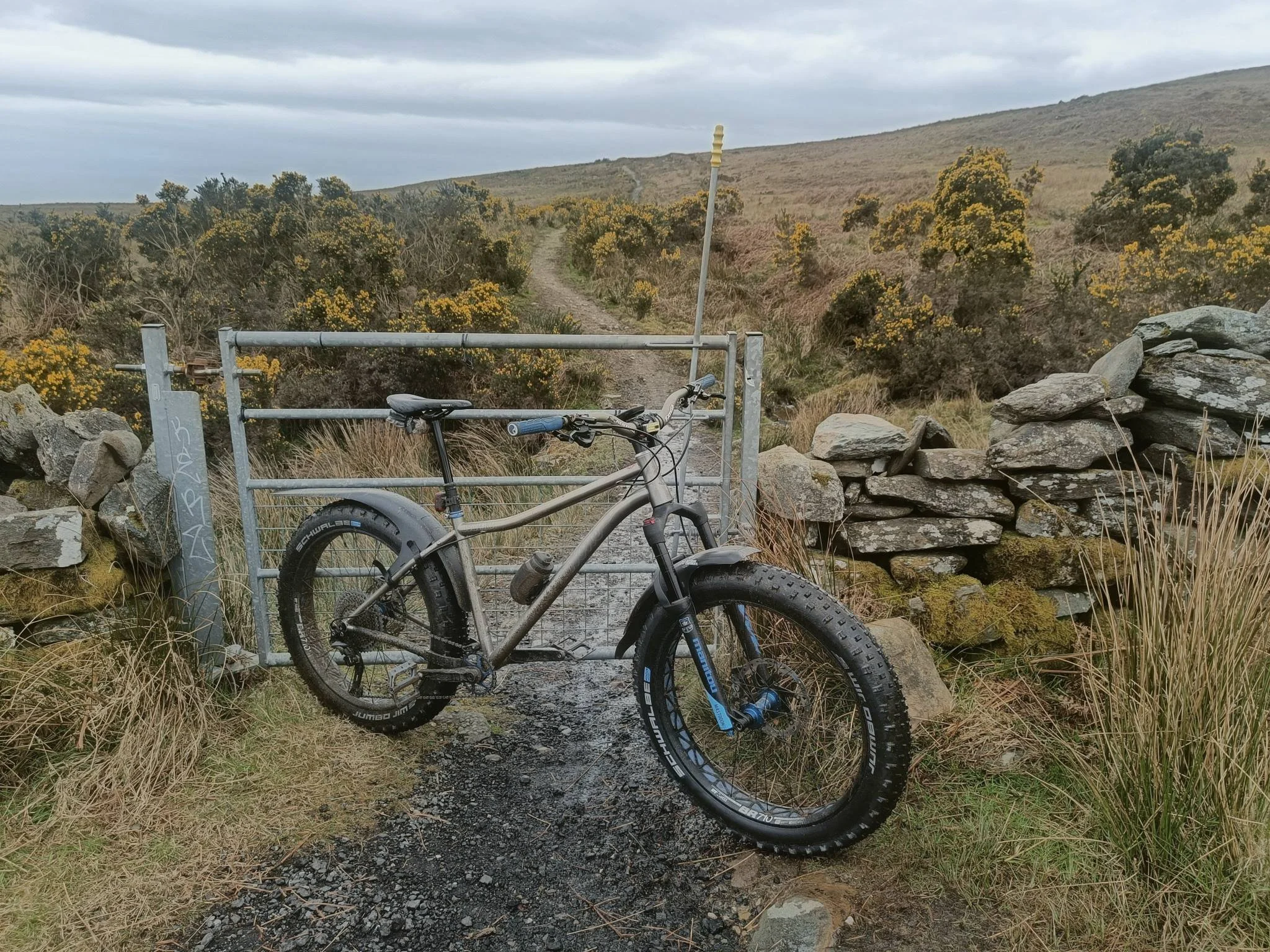

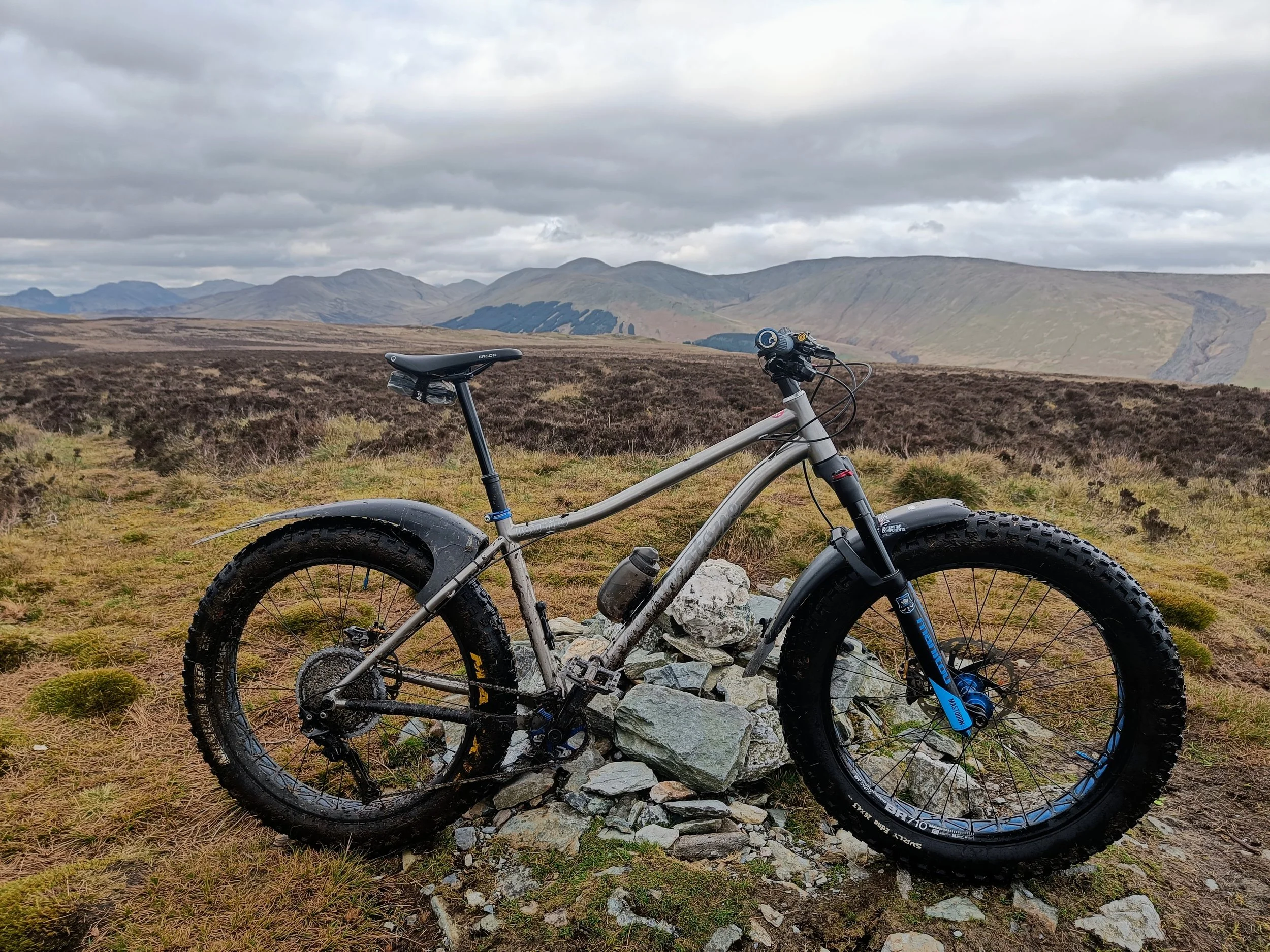

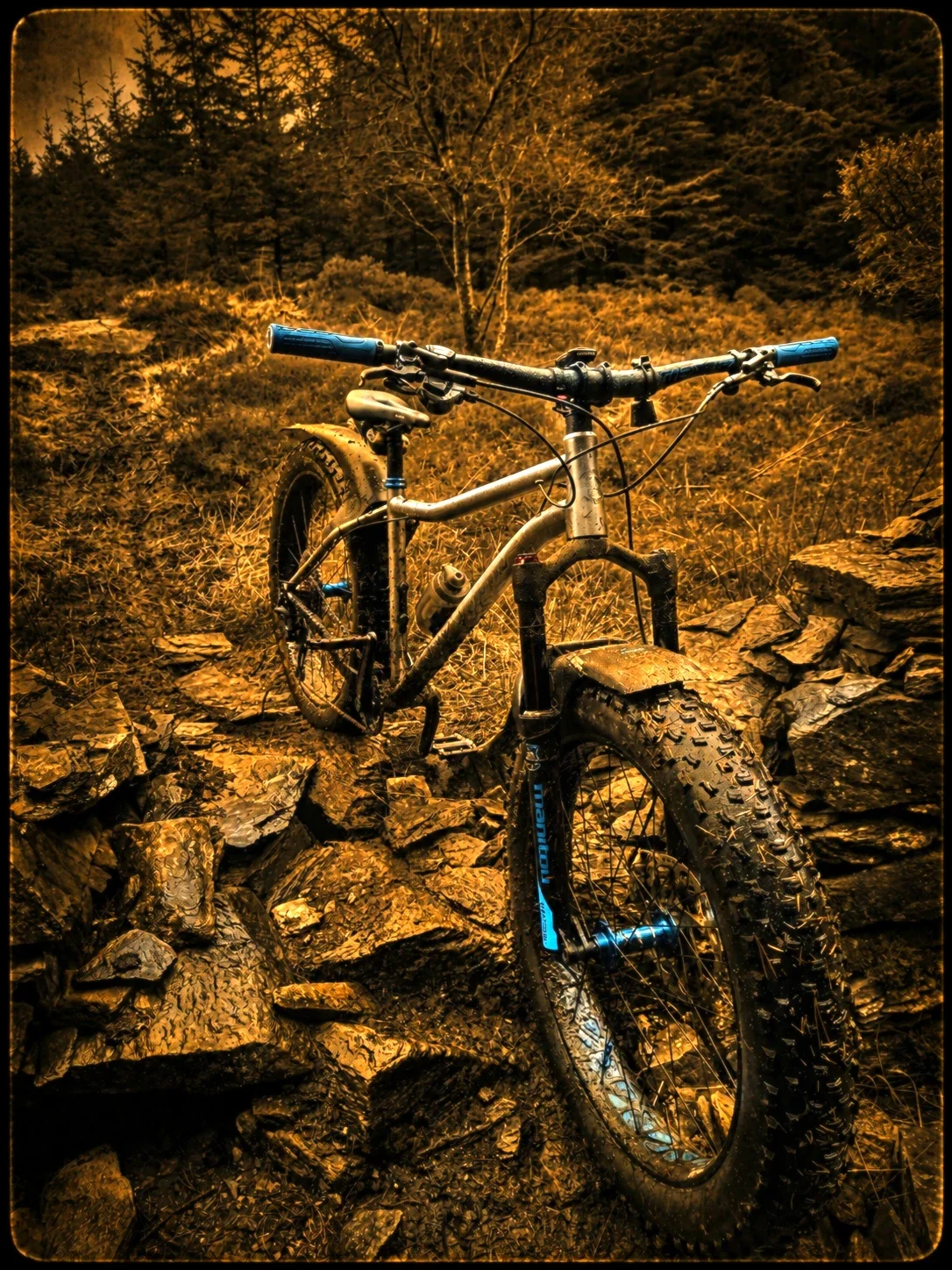

The Smokestone Bow Ti LS is a next-generation fatbike, designed to push the limits of what’s possible on two wheels. Crafted from Grade 9 – 3AL/2.5V titanium, it delivers the perfect balance of strength, compliance, and all-terrain capability. With its progressive Long and Slack geometry, this bike is built for confidence-inspiring control, whether you're bombing down technical descents or grinding up steep climbs.
For 2026, the Bow Ti LS is paired with a 160mm suspension fork, this fatbike isn’t just about tackling snow and sand—it’s ready to take on the gnarliest trails with unmatched versatility and precision.
If you're looking for the ultimate titanium adventure machine, the Bow Ti LS is ready to take you anywhere.
Email me to make a purchase or just find out more here
The Bow Ti LS

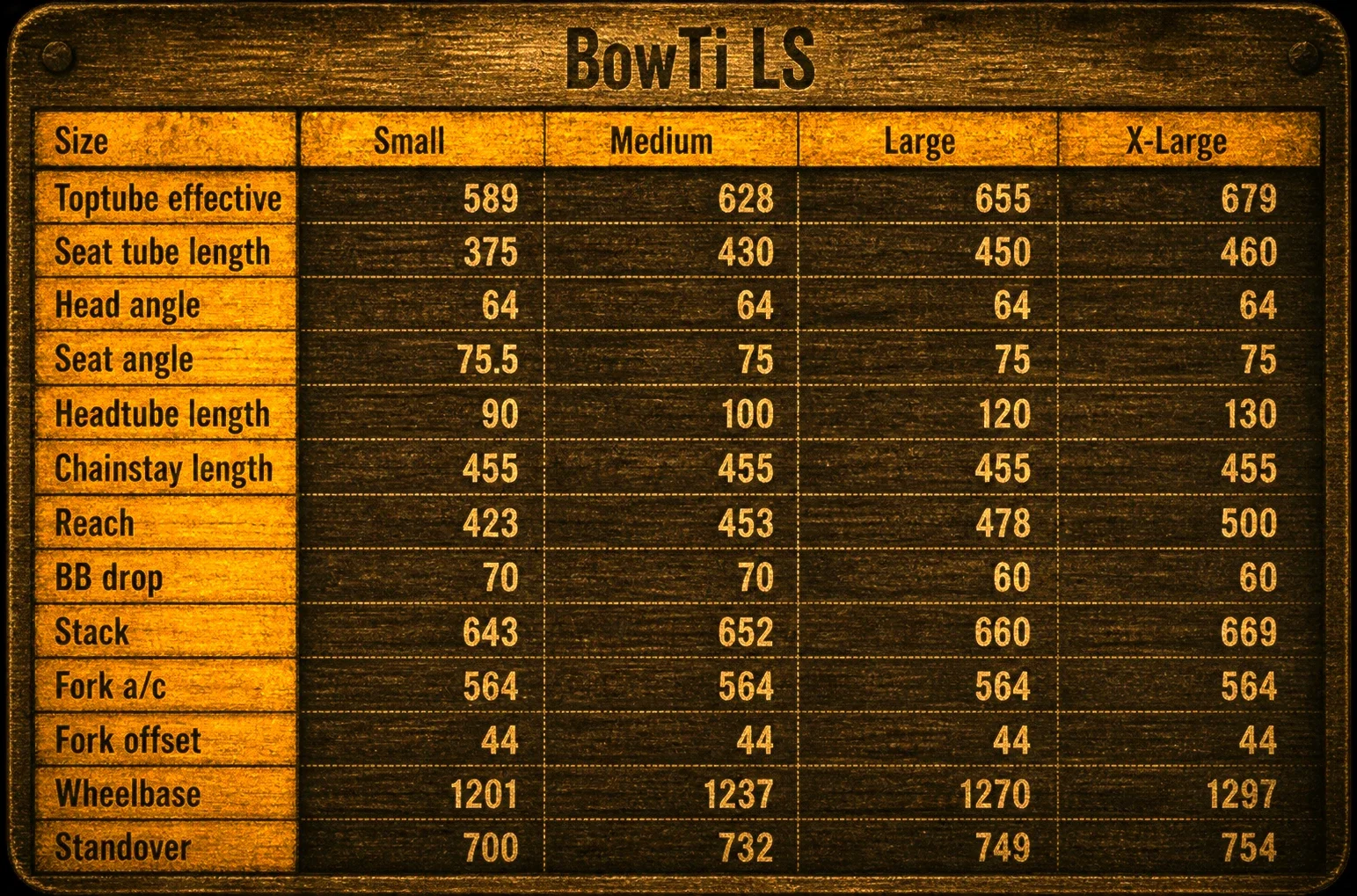

Progressive Long & Slack Geometry
The Bow Ti LS is built for maximum control and confidence on the most demanding terrain. Its long and slack geometry delivers a stable, playful ride that thrives on technical descents while remaining nimble and responsive for tight singletrack.
Climbs as Well as It Descends
Don’t be fooled into thinking this is just a downhill beast—the Bow Ti LS climbs with ease. Its balanced geometry, lightweight Grade 9 titanium frame, and exceptional traction make technical ascents feel effortless, ensuring the ride up is just as thrilling as the ride down.
Titanium Strength & Compliance

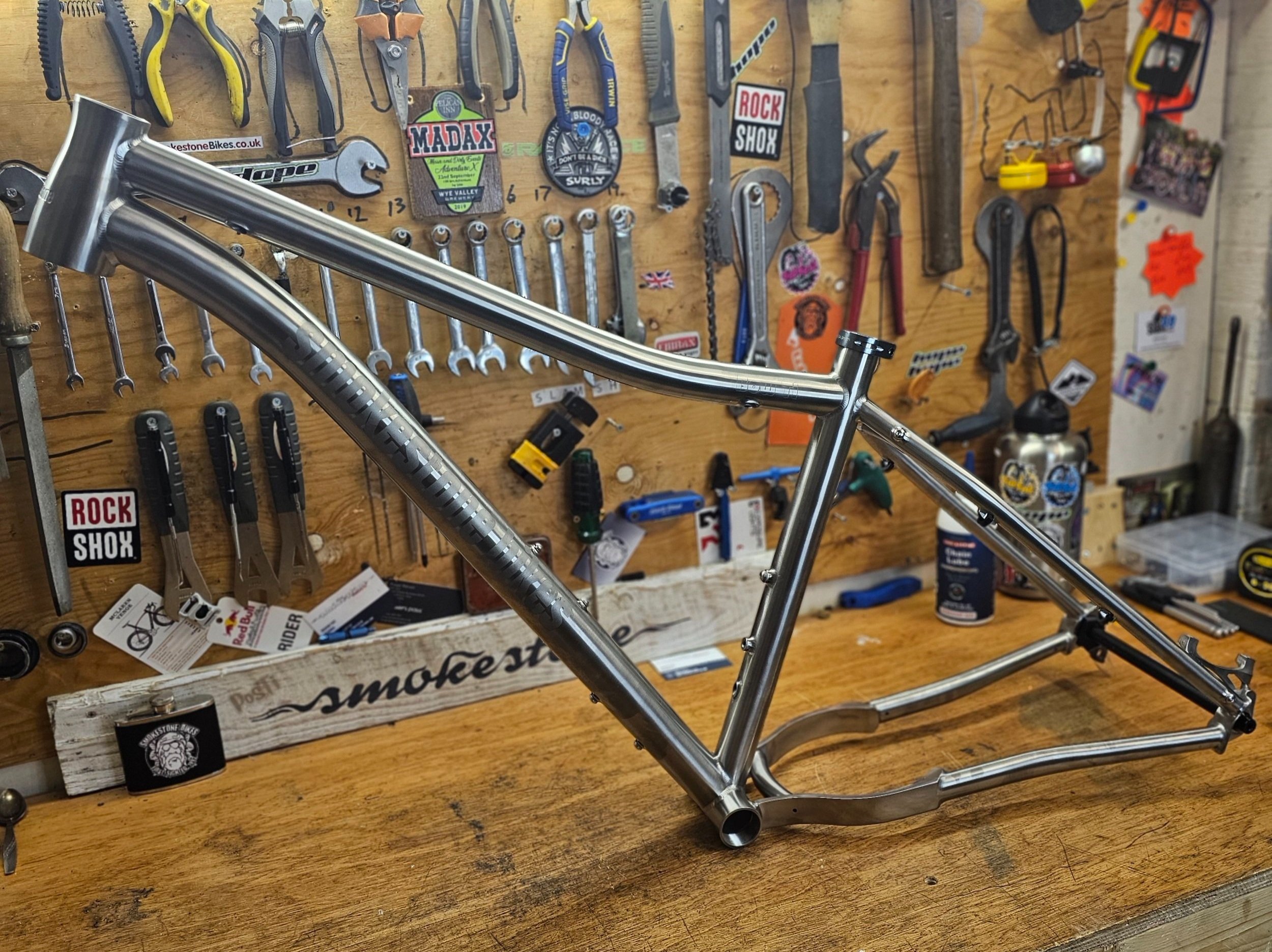

Handcrafted from 3AL/2.5V titanium, the Bow Ti LS is built for a lifetime of adventure. This ultra-strong, corrosion-resistant material not only looks stunning but provides a smooth, damped ride feel—perfect for long days in the saddle.
Ultimate Fatbike Versatility
Designed to tackle snow, sand, mud, and rocky trails, the Bow Ti LS redefines what a fatbike can do. Whether you're sending it down steep descents or grinding up loose climbs, this frame is ready for any challenge
Why choose Smokestone?
Because you’re dealing directly with me.
Every frame is personal. I care about what I build, and I care about the person it’s for.
From the first message to the day you collect your frame — or your bike — it’s just you and me.
Most customers end up feeling more like friends.
And that’s exactly how I like it.
Technical Spec

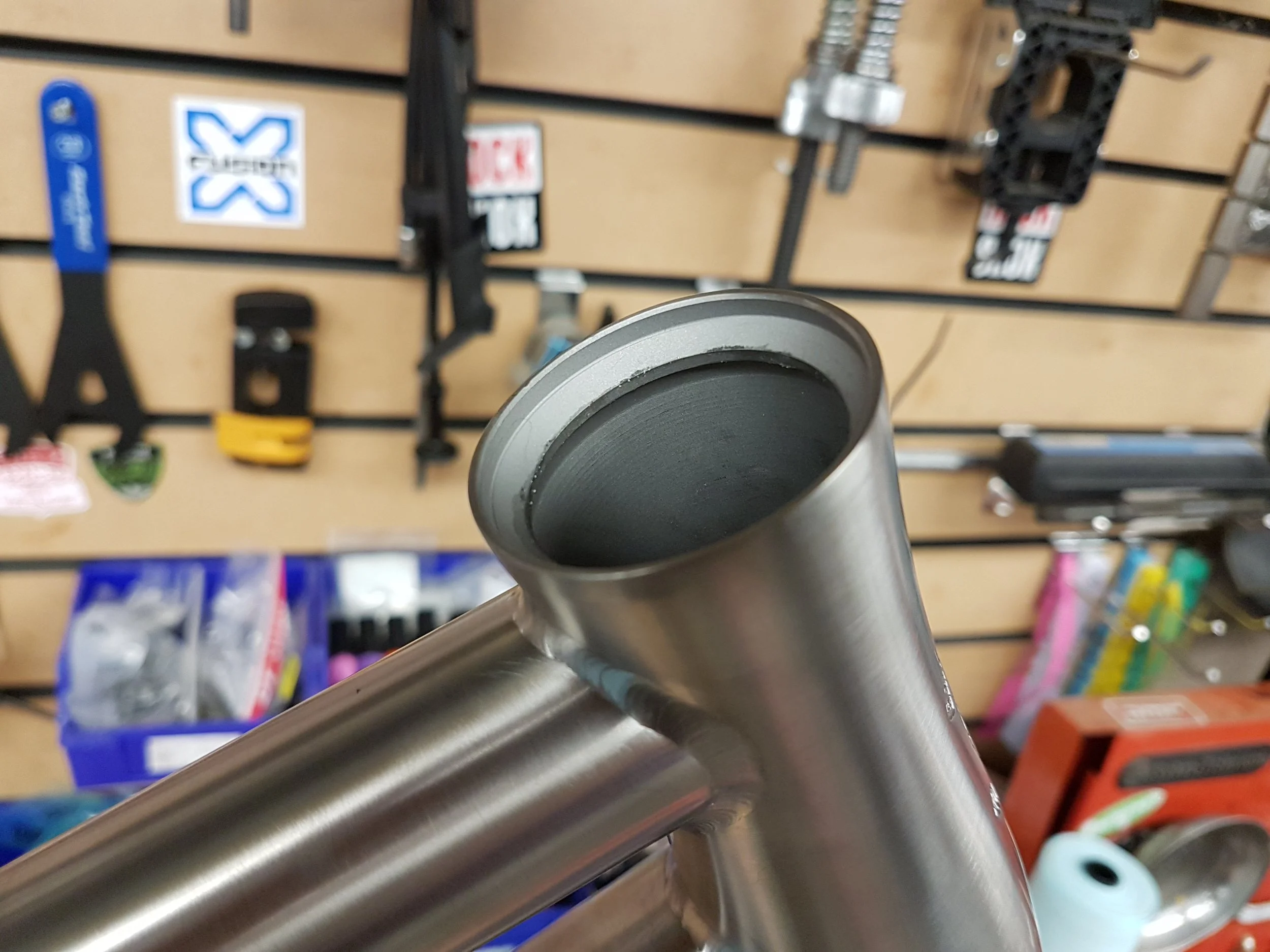

Headset Size: - Top = IS42, Lower = ZS52.
Rear Axle: - 12 x 197mm (Bolt through axle included).
Bottom bracket - 100mm x BSA standard threaded.
Crank width 120mm for 197mm rear axle spacing. Comes with 1 × 10mm spacers.
Seat Post Size: - 31.6mm
Seat Clamp Size: - 34.9mm (Included)
Dropper Post: - Internal Stealth cable routing.
Cable Routing - Internal cable routing (Guided). (External cable routing Optional)
Pannier rack mounts.
2 x bottle cage mounts.
1 x Cargo cage mount (3 bolt under downtube)

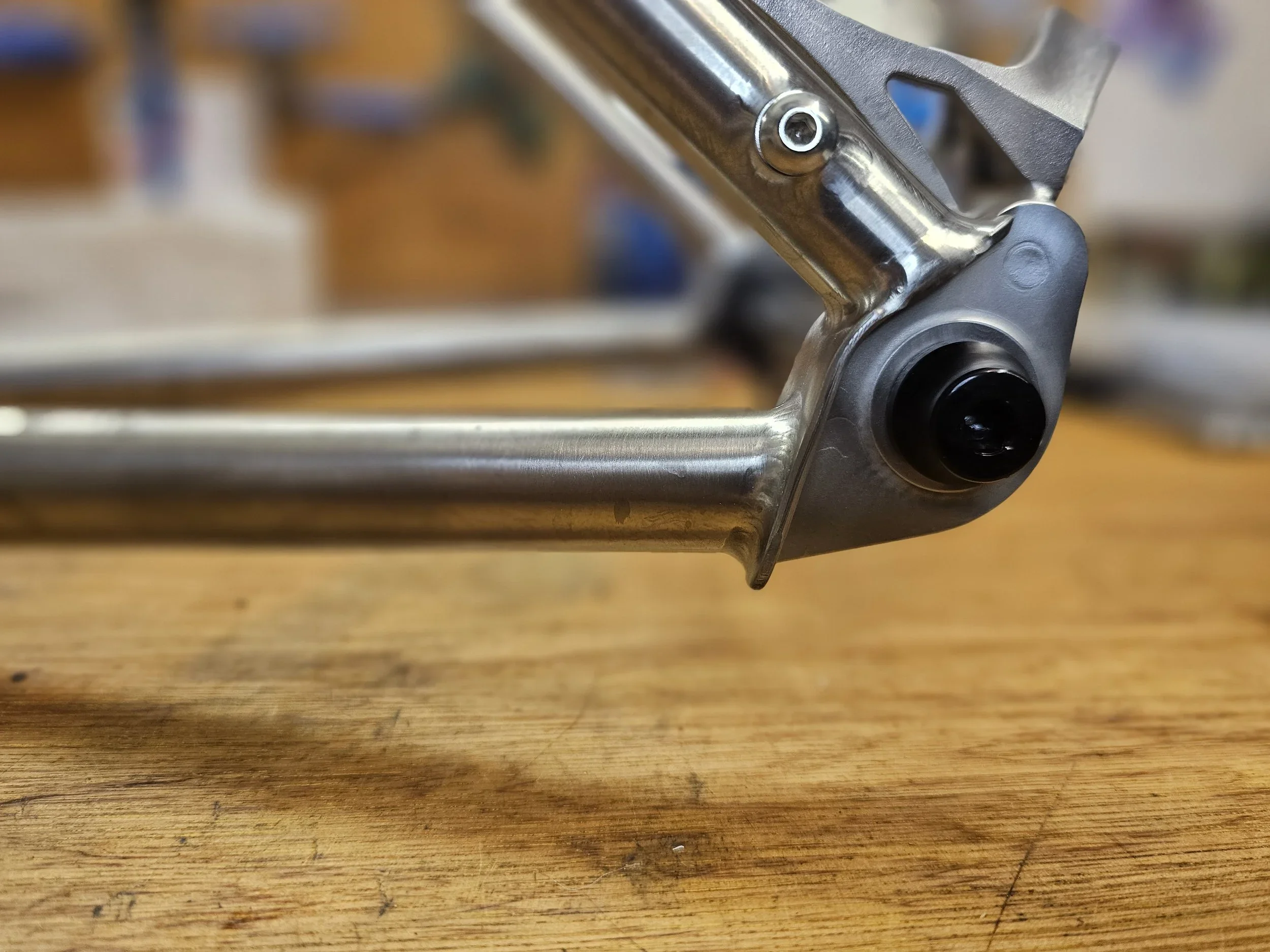

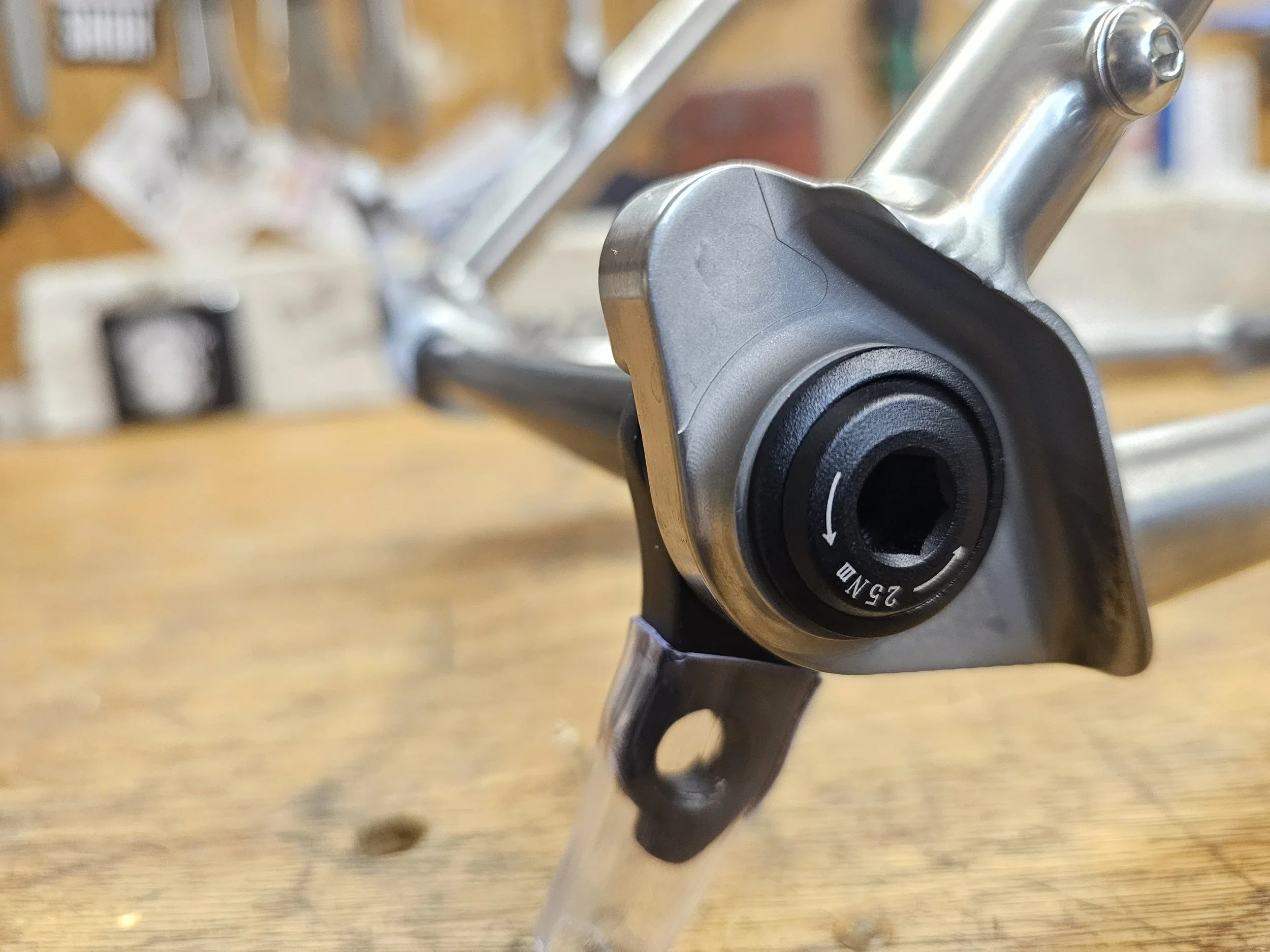

Fixed UDH dropouts or Sliding non UDH drop out option available
Sizes: - Small, Medium, Large, X-Large
Max tyre size - 26 x 4.8, 27 x 4.5, 29 x 3.0.
Suspension fork travel, 150 to 160mm
