The Raven – MTB meets Bikepacking
Frame only Price from - £1650
This flat-bar bikepacking frame was developed from the geometry of the Raven Fatbike, reworked for 29er Boost wheels and a more accessible, all-terrain format. Designed for riders who prefer the control and comfort of a flat bar and a more MTB-inspired riding position, it delivers confident off-road handling with the carrying capacity needed for multi-day adventures.
Why the Raven?
The Raven Fatbike was designed first and foremost as a bikepacking platform, built to remain stable, comfortable and predictable when ridden off-road with luggage. Those same priorities make it an ideal foundation for a flat-bar bikepacking bike. By evolving the Raven’s proven geometry into a 29er Boost format with a more MTB-focused riding position, this frame delivers confident handling, reduced fatigue over long days, and dependable performance when carrying bikepacking bags over mixed and demanding terrain.
Features:
Large front triangle for maximum frame bag capacity, tailored to each size designed with Bikepacking in mind
3 x cargo mounts for extra quick to access stowage

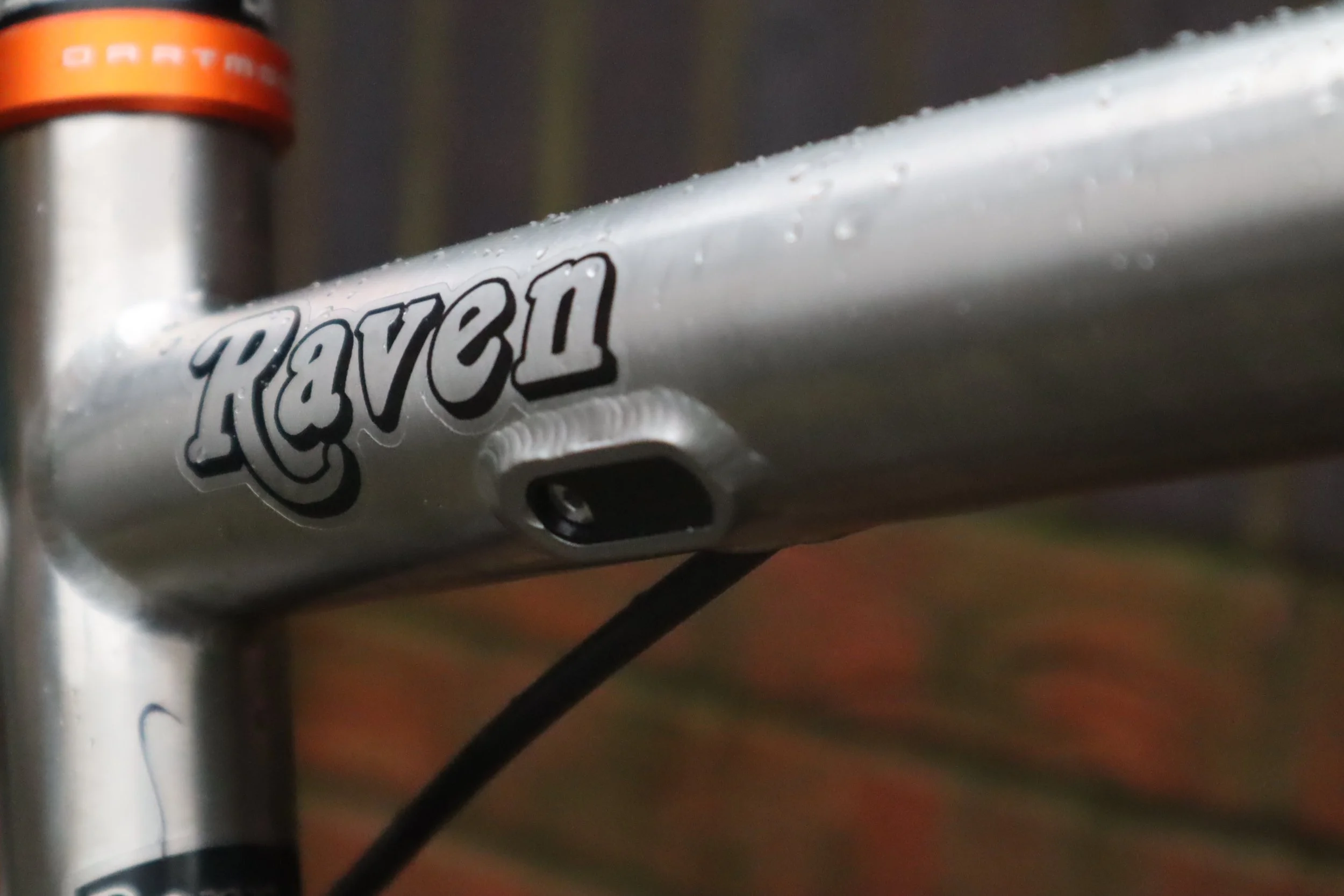

Engraved headtube logo for a premium touch
Dropper post compatibility for added control
Rear rack mounts, for a rack ;-)
Boost (148mm) rear axle spacing, providing ample rear tyre clearance for tyres upto 29x2.6”

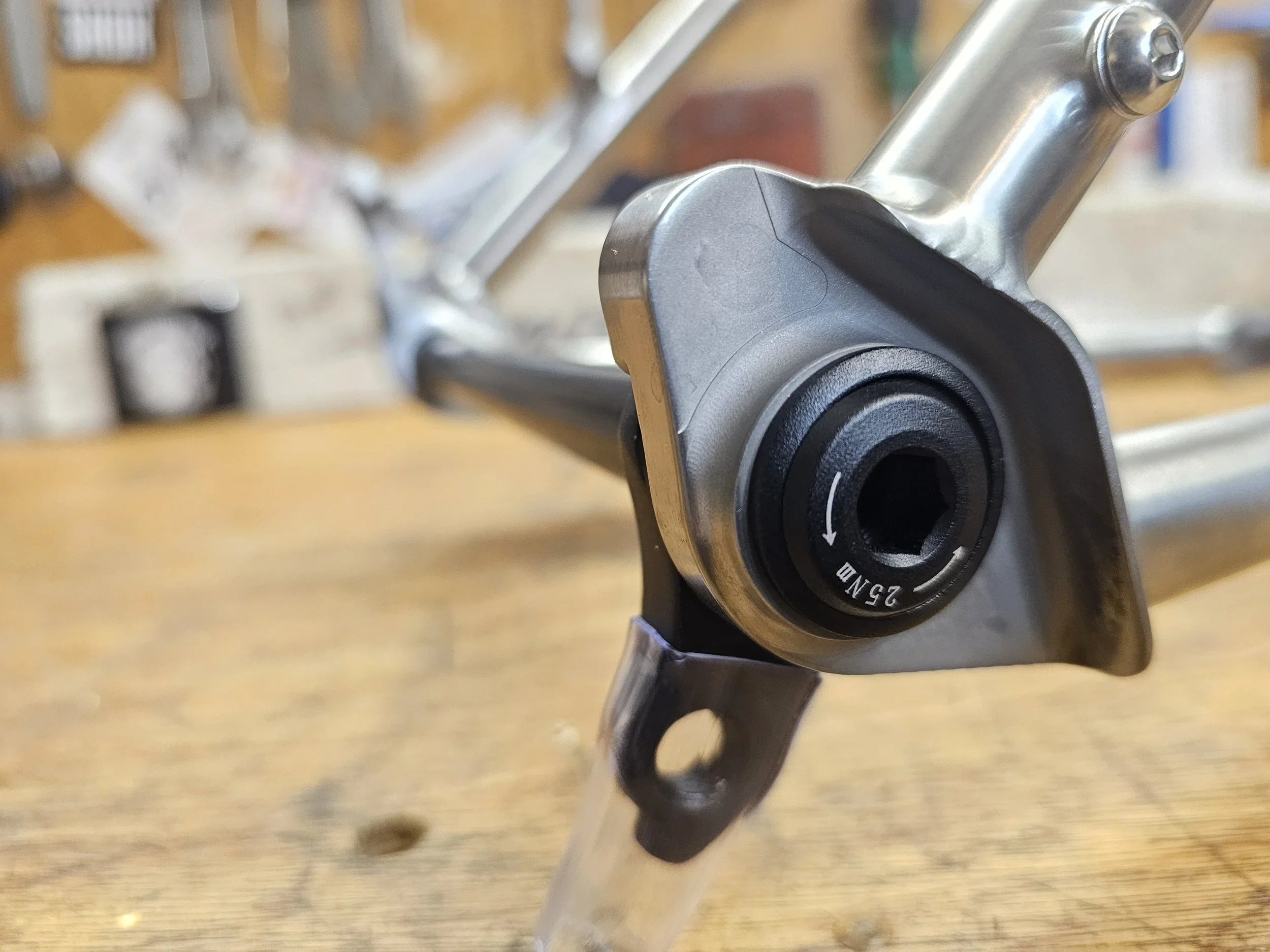

Sliding or fixed UDH rear dropouts
Top tube mounts for a top tube bag
BSA threaded bottom bracket for easy spare part availability
Ability to fit an MTB suspension fork with up to 100mm of travel or a 29er rigid fork for extra clearance
Technical information.
Headset Size: - Top cup = IS 42 , Lower cup = IS 52
Rear Axle: - Boost, 12 x 148mm (Bolt through axle included).
Bottom bracket - 68mm x BSA standard threaded. (Non-Pinion)
Seat Post Size: - 31.6mm
Seat Clamp Size: - 34.9mm (Included)
Dropper Post: - Internal Stealth cable routing.
Cable Routing - Internal cable routing (Guided). (External Option)
Pannier rack mounts.
3 x anything cage mounts.
Sliding or fixed UDH dropouts

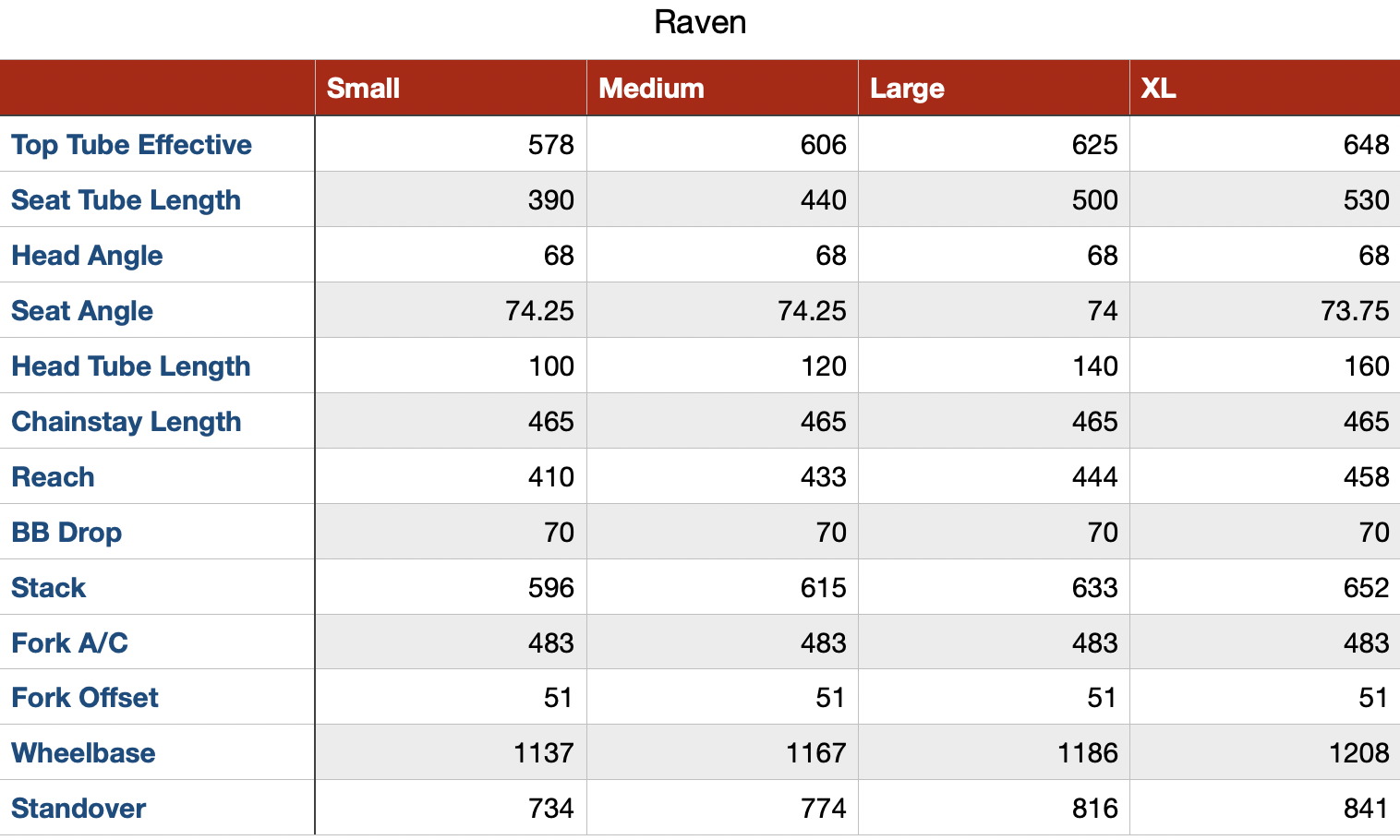

Sizes: - Xs, Small, Medium, Large, X-Large.
Max tyre size - 29x2.6”
Suspension fork travel - 100mm
Rigid fork, axle to crown - 483mm
